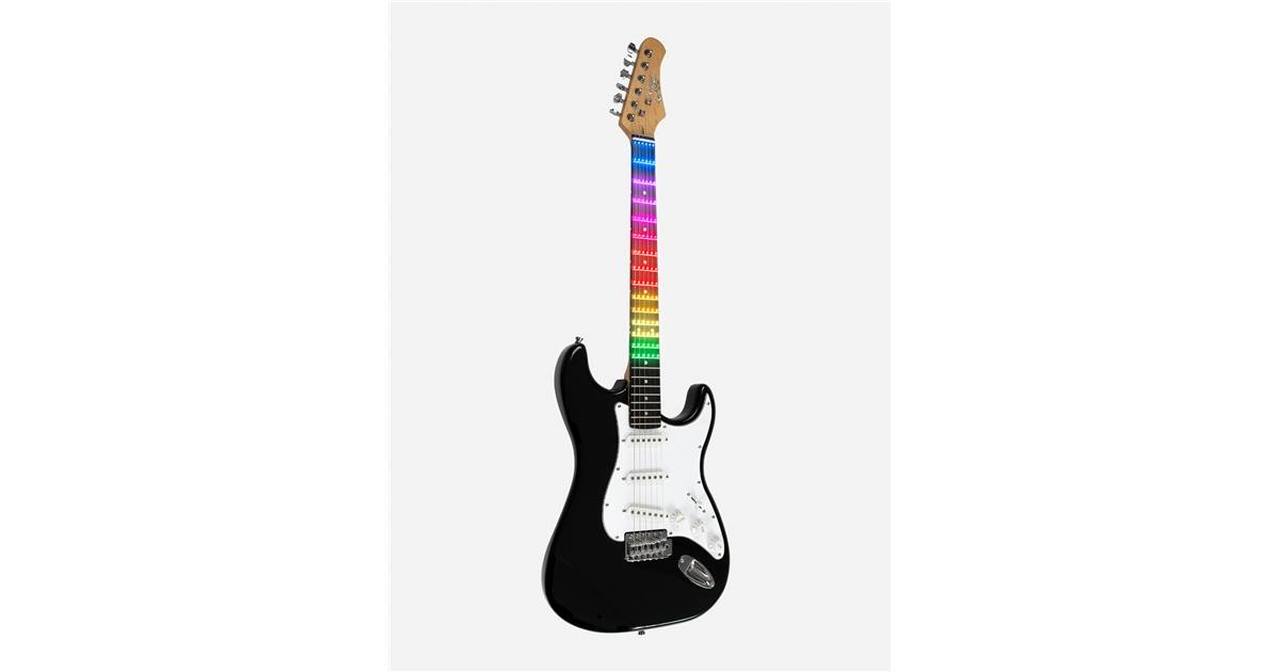

The ST-100 Black Visual Note is the electric guitar from the "Visual Note" by Eko Guitars, with a Poplar body, Maple neck and Eko WPC resin fretboard equipped with Visual Note LED foil that interfaces with the dedicated APP. It is equipped with Eko pickups in S-S-S configuration, Volume and two Tone controls, 5-way blade switch and bridge with tremolo lever. In the APP there are video lessons, exercises, tuner, scales and arpeggios that are transferred in real time directly to the LEDs on the keyboard to guide the user in learning in a fun way.

ST-100 BLACK VISUAL NOTE BY EKO GUITARS OVERVIEW

Visual Note is a device consisting of an LED foil and a control unit that can be attached directly to the guitar fretboard (electric, acoustic, classical) and an APP that can manage all its functions. Visual Note is primarily aimed at guitar students and teachers, providing all the necessary tools for both learning and teaching. This system allows you to learn guitar independently, where, when and how you want, following the guiding lights directly on the guitar fretboard and reference audio. If you are a teacher, you can assign exercises, scales, arpeggios and songs (via APP) that the student will instantly view and follow on his or her own fretboard. A super interactive, direct, engaging teaching and learning method, teaching 2.0.

The "Tribute Starter" series was created to provide an opportunity for all guitar and bass players, especially beginners, to have an instrument with similar features to guitar and bass models that have made music history. Thanks to the fantastic value for money, these budget instruments easily succeed in satisfying the idea and desire to play a classically designed instrument. The S-300 has a Poplar body, Maple neck and Resin fingerboard. It mounts three Eko pickups in S-S-S configuration, Volume controls, 2 Tones and 5-way selector switch. It features a 42mm nut, 650mm scale length, the fingerboard consists of 22 frets with 14" radius, and a tremolo lever is also included.

INSTRUCTIONS ON HOW TO USE VISUAL NOTE

1. DOWNLOAD the Visual Note APP from your store (Google Play or App Store).
2. POWER ON: Turn on the device by pressing the button with the Visual Note logo for at least 2 seconds, when the device is on the led on the control unit and the first row of led on the foil will be on and green in color. To turn the device off, press the button again.
3. BLUETOOTH CONNECTION: when the device is connected to the App the led on the control unit and the first row of led on the foil will be active and blue in color.
   FIRST PAIRING PROCEDURE: Press the bluetooth symbol in the app and wait for the device to connect automatically.
4. BATTERY/CHARGE: A USB charging cable with magnetic safety anchor is provided in the package. Connect it to a charger and the led on the control unit will turn red, when it turns off the charging is complete. After 5 minutes on standby without bluetooth connection, the device will turn off automatically.
   BATTERY LIFE: 10h RECHARGE TIME: 3h
5. LED ON THE CONTROL UNIT:
   Green led: device on
   Blue led: device connected via bluetooth
   Red led: device charging
6. QUICK RELEASE SUPPORT: You can easily release the control unit and recharge it more easily or quickly replace it with one that is already charged.
7. HANGING THE GUITAR: When using a guitar holder with a headstock attachment, always check that it does not interfere with the control unit mounted on the back of the headstock.

VISUAL NOTE APP OVERVIEW

Download the Visual Note APP, available for IOS and Android devices, and you can begin the innovative learning experience thanks to its content that communicates in real time with LED foil. With the purchase of an Eko Visual Note guitar, you will be able to enjoy the following features for free.

Lessons: introduction + first 2 levels, where each UNIT consists of exercises, explanations, tablature, sheet music, songs and video lessons made by Massimo Varini, which will accompany the student on the learning path starting from scratch.
Songs, Riffs & Solos: 3 songs and 3 riffs with which the student will put the teachings into practice, playing songs and phrases inspired by the great classics of music.
Tuner: you can tune your guitar with ease, guided by LEDs, and you can experiment with special tunings thanks to the many tuning templates here.
Chords, Scales, Arpeggios: a complete handbook on all major, minor, augmented, diminished, with 7, maj7 and min7 chord positions and forms; complete geometries on major, natural minor and pentatonic scales in all keys; and melodic arpeggios based on all major, minor, augmented and diminished chords in all forms.
Lighting effects: 3 lighting effects that will light up your guitar on stage.

*You can unlock additional content by subscribing with Visual Note directly from the APP.

ST-100 BLACK VISUAL NOTE BY EKO GUITARS BULLET POINTS

• Foil with super bright LEDs;
• Visual Note APP with features and content for learning;
• Eko pickups in S-S-S configuration;
• Bridge with tremolo arm;
• Price/quality ratio.

ST-100 BLACK VISUAL NOTE BY EKO GUITARS SPECIFICATIONS

Visual Note (device): LED foil + control unit
Foil/app connection: Bluetooth
Charging: via magnetic USB cable (included)
Battery: duration 10h / recharge time 3h
Color: Black
Body Shape: Strat style
Body Material: Poplar
Neck Material: Maple
Fretboard Material: Eko WPC (Wood Polymers Composite) resin
Body Finish: Gloss
Neck Finish: Satin
Neck Shape: Eko Low C
Fretboard Width: 42 mm
Radius: 14"
Scale length: 650 mm
Number of Frets: 22
Frets Type: 1.8mm x 1.0mm Silver/Nickel
Bridge: Eko Stratoid with Tremolo
Tuning Machines: Eko Die Cast
Electronics: Eko Standard pickups - (x3) single-coil
Electronic Controls: Volume, 2 Tones, 5-way blade switch
Case: Not Included
Recommended Strings: Eko 10-46 REGULAR SET/6
